Linux Filesystem Hierarchy Explained: The Complete Guide (Beginner to Expert)

You Opened a Linux Terminal. Now What?

You typed ls / and got hit with a wall of folders — bin, boot, dev, etc, home, lib… and your brain said “nope.”

Don’t worry. Every Linux user has been there.

Here’s the truth: Linux’s filesystem isn’t random. It follows a beautiful, logical standard called the Filesystem Hierarchy Standard (FHS). Once you understand it, navigating any Linux system — Ubuntu, Arch, Debian, a cloud server, a Raspberry Pi — feels like reading a map you already know.

This guide breaks down every major directory, what lives there, why it exists, and when you’ll actually care about it.

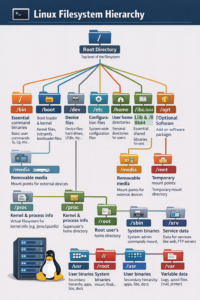

First: Everything Starts at / — The Root Directory

Think of / (just a single forward slash) as the trunk of a tree. Every file, folder, and device on your entire Linux system hangs off this one point.

There’s no C:\ or D:\ like Windows. There’s just /. One tree. One root. Everything branches from here.

/
├── bin
├── boot
├── dev
├── etc
├── home
├── lib & lib64
├── media
├── mnt
├── opt
├── proc
├── root
├── sbin
├── srv
├── usr
└── var

Now let’s walk through each branch.

/bin — The Basic Toolkit

What it is: Essential command binaries (programs) that every user can run.

What lives here: ls, cp, mv, cat, echo, mkdir — the everyday commands you use constantly.

Think of it as: The toolbox that’s always within arm’s reach. Without /bin, you literally couldn’t do anything in a terminal.

Real-world moment: When you type ls to list files? That command is physically stored in /bin/ls. You’re running a file every single time.

/boot — The Ignition Switch

What it is: Everything needed to start up the operating system.

What lives here: The Linux kernel itself, initramfs (initial RAM filesystem), and bootloader files (like GRUB).

Think of it as: The key that starts the car. The system reads this directory before anything else is even loaded into memory.

Pro tip: Unless you’re customizing your bootloader or kernel, don’t touch /boot. Messing with it can make your system unbootable.

/dev — The Device Whisperer

What it is: Device files — Linux’s way of treating hardware as files.

What lives here: Representations of hard drives (/dev/sda), USB drives (/dev/sdb), terminals (/dev/tty), and even /dev/null (the famous “trash void” of Linux).

Think of it as: A control panel where every piece of hardware gets its own file handle.

Mind-bending fact: In Linux, everything is a file — including your keyboard, your screen, and your hard drive. /dev is where that philosophy becomes real.

/etc — The System’s Brain

What it is: System-wide configuration files.

What lives here: Network settings, user account info (/etc/passwd), SSH config, cron jobs, package manager settings — basically the settings menu for your entire OS.

Think of it as: The control panel of a building. Everything that governs how the system behaves lives here.

You’ll use this when: Setting up a web server, configuring SSH, changing hostnames, managing users, editing network interfaces. As a sysadmin, /etc is your second home.

/home — Your Personal Space

What it is: User home directories.

What lives here: Every regular user gets their own folder here. If your username is ali, your personal space is /home/ali — your documents, downloads, desktop, configs, and dotfiles.

Think of it as: Your bedroom in a shared apartment. Everyone else has one too, but yours is yours.

Good to know: The ~ symbol in the terminal is a shortcut for your home directory. cd ~ takes you straight home, no matter where you are.

/lib & /lib64 — The Shared Libraries

What it is: Essential shared libraries that core system programs need to run.

What lives here: .so files (shared objects) — the Linux equivalent of .dll files on Windows. Programs in /bin and /sbin pull from here constantly.

Think of it as: A common toolbox that multiple programs share instead of each carrying their own copies.

64-bit systems have both /lib (32-bit) and /lib64 (64-bit) because some software still needs both.

/media — Plug It In

What it is: Mount points for removable media.

What lives here: When you plug in a USB drive or insert a CD, Linux automatically mounts it under /media. For example: /media/username/USB_DRIVE.

Think of it as: The USB ports and disc trays of your filesystem.

Modern desktops handle this automatically. You plug in a drive, it shows up in /media, you eject it, it disappears. Clean and simple.

/mnt — The Manual Dock

What it is: Temporary mount points, set up manually by the user or admin.

What lives here: Usually nothing by default. It’s a staging area where sysadmins mount external drives, network shares, or disk images temporarily.

Think of it as: A temporary parking spot. You use it, then move on.

Difference from /media: /media is for auto-mounted removable devices. /mnt is for manual, admin-controlled mounts.

/opt — The Optional Extras

What it is: Optional add-on software packages.

What lives here: Third-party applications that don’t follow the standard Linux file layout — like Google Chrome, custom enterprise software, or manually installed tools.

Think of it as: The “extras” shelf. Software installed here keeps all its files together in its own subdirectory, instead of scattering them across the system.

Example: /opt/google/chrome/ — everything Chrome needs, neatly contained.

/proc — The Live Dashboard

What it is: A virtual filesystem that exposes real-time kernel and process information.

What lives here: It’s not real files on disk — it’s the kernel pretending files exist to give you live system info. /proc/cpuinfo shows your CPU details. /proc/meminfo shows RAM usage. /proc/1234/ shows everything about the process with ID 1234.

Think of it as: A live dashboard showing what the system is doing right now.

Cool trick: Run cat /proc/cpuinfo and see your CPU specs printed straight from the kernel. No app needed.

/root — The Admin’s Home

What it is: The home directory of the root user (system administrator).

What lives here: Personal files, scripts, and configs belonging to the superuser.

Think of it as: The manager’s private office. Regular users don’t have access here.

Why not /home/root? Because if /home is on a separate partition and fails to mount, the root user still needs a home directory to log in and fix things. /root stays close to the base system.

/sbin — Admin-Only Tools

What it is: System binaries reserved for the superuser.

What lives here: System administration commands like mount, fsck (filesystem check), iptables, reboot, and shutdown.

Think of it as: The staff-only section of the toolkit. Regular users can see these tools exist but can’t run most of them without sudo.

/srv — Service Data

What it is: Data for services provided by the system.

What lives here: If your Linux machine runs a web server, FTP server, or data repositories, the files they serve live here. For example, /srv/www/ for website files or /srv/ftp/ for FTP content.

Think of it as: The stockroom behind a shop counter — where the goods being “served” are stored.

Honestly? Many distros don’t use /srv consistently. You’ll mostly care about it when setting up servers.

/usr — The Big Library

What it is: User binaries and a secondary hierarchy of programs, libraries, and documentation.

What lives here: Most of the software you install ends up here — /usr/bin/ (user commands), /usr/lib/ (libraries), /usr/share/ (shared data), /usr/local/ (locally compiled software).

Think of it as: A massive library building that holds most of the system’s knowledge and tools.

Fun fact: /usr used to stand for “Unix System Resources.” It’s often the largest directory on a Linux system.

/var — The Living Log

What it is: Variable data — files that change constantly as the system runs.

What lives here: Log files (/var/log/), mail spools (/var/mail/), printer queues, databases, and cached package data (/var/cache/).

Think of it as: The system’s diary — a continuous record of what’s happening, what’s been queued, and what’s waiting to be processed.

Sysadmins love /var/log: Almost every problem you ever debug on Linux has a clue hiding somewhere in /var/log. It’s the first place to look when something breaks.

Quick Reference Cheat Sheet

Directory One-Line Purpose
/ Root — everything starts here
/bin Basic commands (ls, cp, mv)
/boot Kernel and bootloader files
/dev Hardware as files
/etc System configuration files
/home Personal user directories
/lib /lib64 Shared libraries for core programs
/media Auto-mounted removable drives
/mnt Manual temporary mount points
/opt Optional third-party software
/proc Live kernel and process info
/root Root user’s home directory
/sbin Admin-only system commands
/srv Data served by system services
/usr User programs, libs, and docs
/var Logs, spools, and variable data

The Big Picture: Why This Design Is Genius

Linux’s filesystem hierarchy isn’t arbitrary — it’s deliberately separated by purpose and permission level:

  • Stability vs. Change: Static system files (/bin, /lib) are kept separate from constantly-changing data (/var). This makes backups and system recovery far easier.
  • User vs. Admin: Regular users live in /home. The system admin lives in /root. Admin tools live in /sbin. The separation is intentional and enforces security.
  • Essential vs. Optional: Core stuff (/bin, /etc) is separate from optional extras (/opt). If a non-essential partition fails, the core system still runs.

This is why Linux powers 96% of the world’s top web servers, every Android phone, and most cloud infrastructure. The design is built to be reliable, recoverable, and scalable.
